Stainless Steel Extractor Tanks
Extraction equipment lives or dies on interior finish and clean fitting welds. Swhift builds extractor vessels with a food-grade finish inside, a polished exterior, and jacketing when the process needs temperature control.
What Extractor Tanks are for
An extractor tank is a process vessel rather than a storage tank. Material goes in, solvent or carrier moves through it, and the product comes off through a controlled outlet — usually into a second vessel below. That makes the interior surface, the drain geometry and the fitting welds the parts that matter most.
We finish the inside to a food-grade standard and polish the outside, so the vessel cleans down properly and looks right in a facility that gets inspected. Fittings are hand-welded, and we build the stands and support legs as part of the same job.
Because extraction setups are rarely identical, most of these are quoted from a sketch or a P&ID rather than off a size chart. Send what you have and we will work from it.
Typical applications
- Botanical extraction
- Other biomaterial processing
- Small-batch process development
- Collection and receiving vessels
Get a price on this tank
Stock size or custom — send what you have and we will quote it. Consultations are free.
Construction
How we build it
Every specification below is what Swhift actually publishes for this product line.
- Built for botanicals and other biomaterials
- FDA-approved materials — 100% tasteless and odorless
- Food-grade finish inside, polished outside
- Hand-welded fittings
- Made in the U.S.A.
Options
What you can change
Stock or custom sizing is available across the range. These are the options most often specified.
- Insulated jackets available

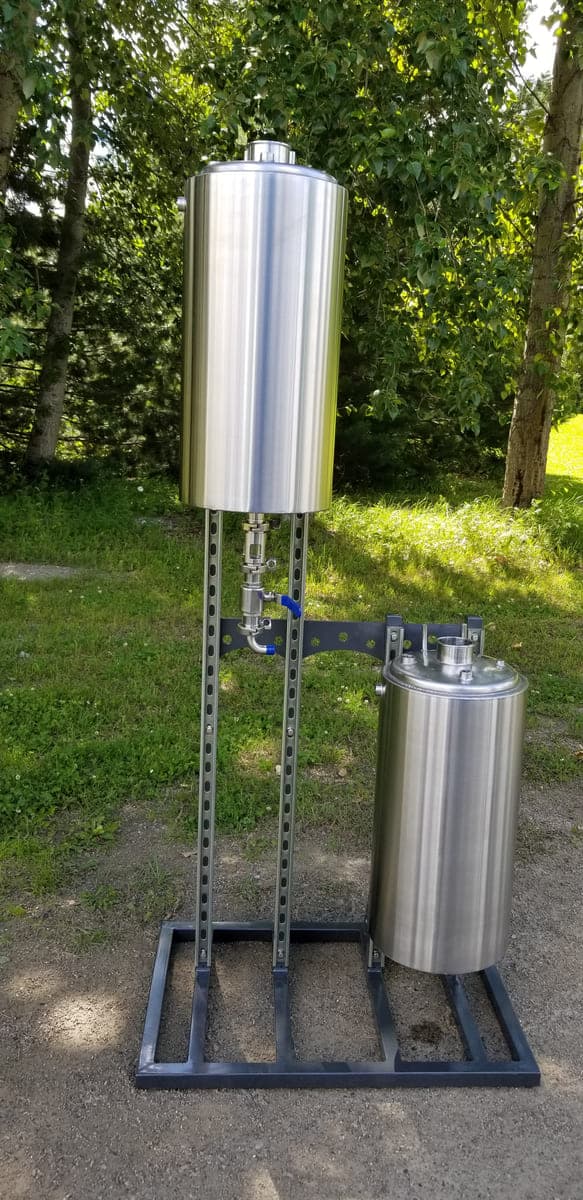

- Vessel-and-collection-vessel assemblies built as a set
- Stands, legs and framework fabricated with the vessel
- Fitting sizes, styles and locations to your drawing
- Sight glass, ferrule and clamp connections as specified

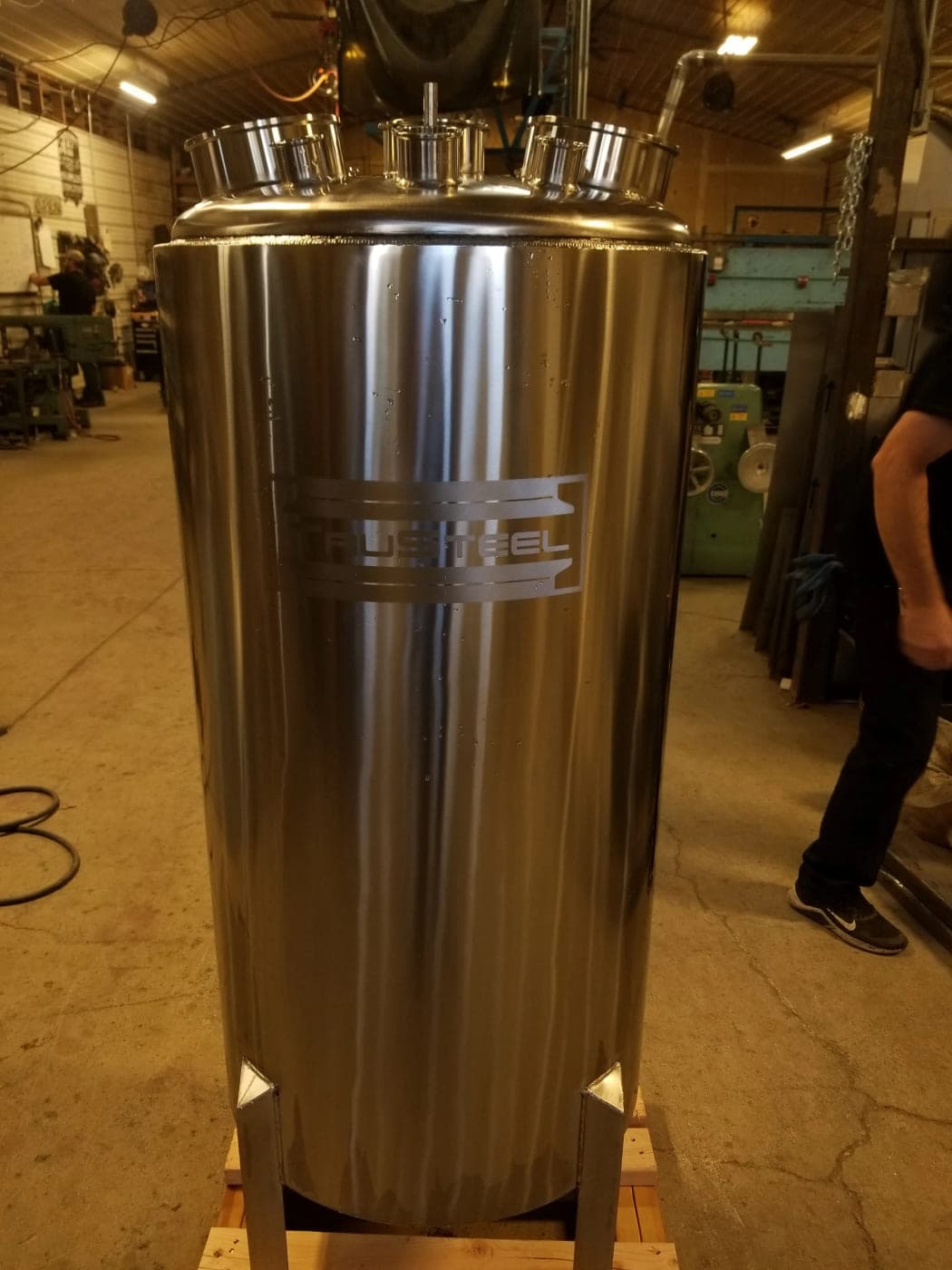

Extractor Tanks we have built
Photographs from our shop and from installations. Every image on this site is our own work — there is no stock photography anywhere on it.
Industries that use this tank
- Food & RestaurantFood-grade tanks, custom components and one-off stainless work for production kitchens and food manufacturers.
- HealthcareTreated water storage, ozone contact vessels and custom stainless components for healthcare facilities.
- Oil, Gas & EthanolProcess vessels, pressure tanks and vacuum tanks for fuel and energy processing operations.
Extractor Tanks: common questions
Do you build the stand as well as the vessel?
Yes. We regularly fabricate the frame, legs and support structure alongside the vessel so the assembly arrives as one piece of equipment rather than parts to be fitted on site.
What interior finish do you use?
A food-grade finish inside with a polish on the exterior. If you need a specific surface roughness or a sanitary interior finish called out on your specification, note it on your quote request and we will confirm what we can hold.
Can the vessel be jacketed for heating or cooling?
Insulated jackets are available, and we build heat exchange coils as well. Tell us the temperature you need to hold and how you plan to drive it, and we will quote the right approach.
Is this a pressure vessel?
That depends entirely on your process. If your extraction runs above atmospheric pressure, say so on the quote request — it changes the shell, the heads and the test requirement, and we will quote it as a pressure tank instead.
Related products
Stainless Steel Pressure Tanks
Vertical and horizontal pressure vessels in stock diameters from 9-5/8 in. to 60 in., or built to your drawing.
ViewCustom Stainless Fabrication
One-off vessels, replacement parts and equipment built to your drawing.
ViewStainless Steel Vacuum Tanks
Vessels built to hold vacuum, with the heavier shell that external pressure requires.
View
Start a project
Ready to quote your extractor tanks?
Send dimensions, a completed layout sheet, or a description of the job. If a stock size fits, we will point you at it rather than quoting a custom build.
Consultations are free. Every project is managed by a single production manager, so you talk to the person who knows your job.
